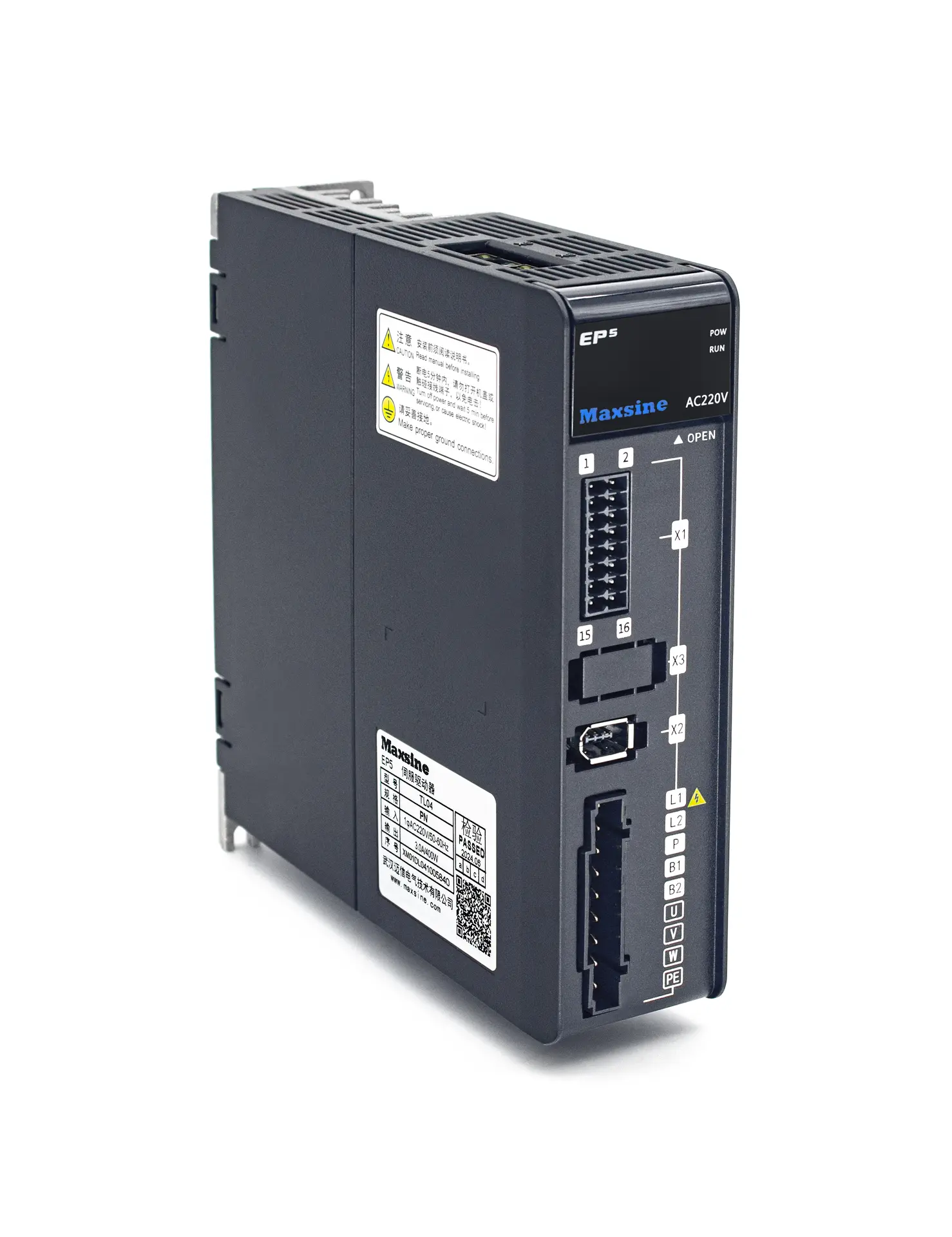

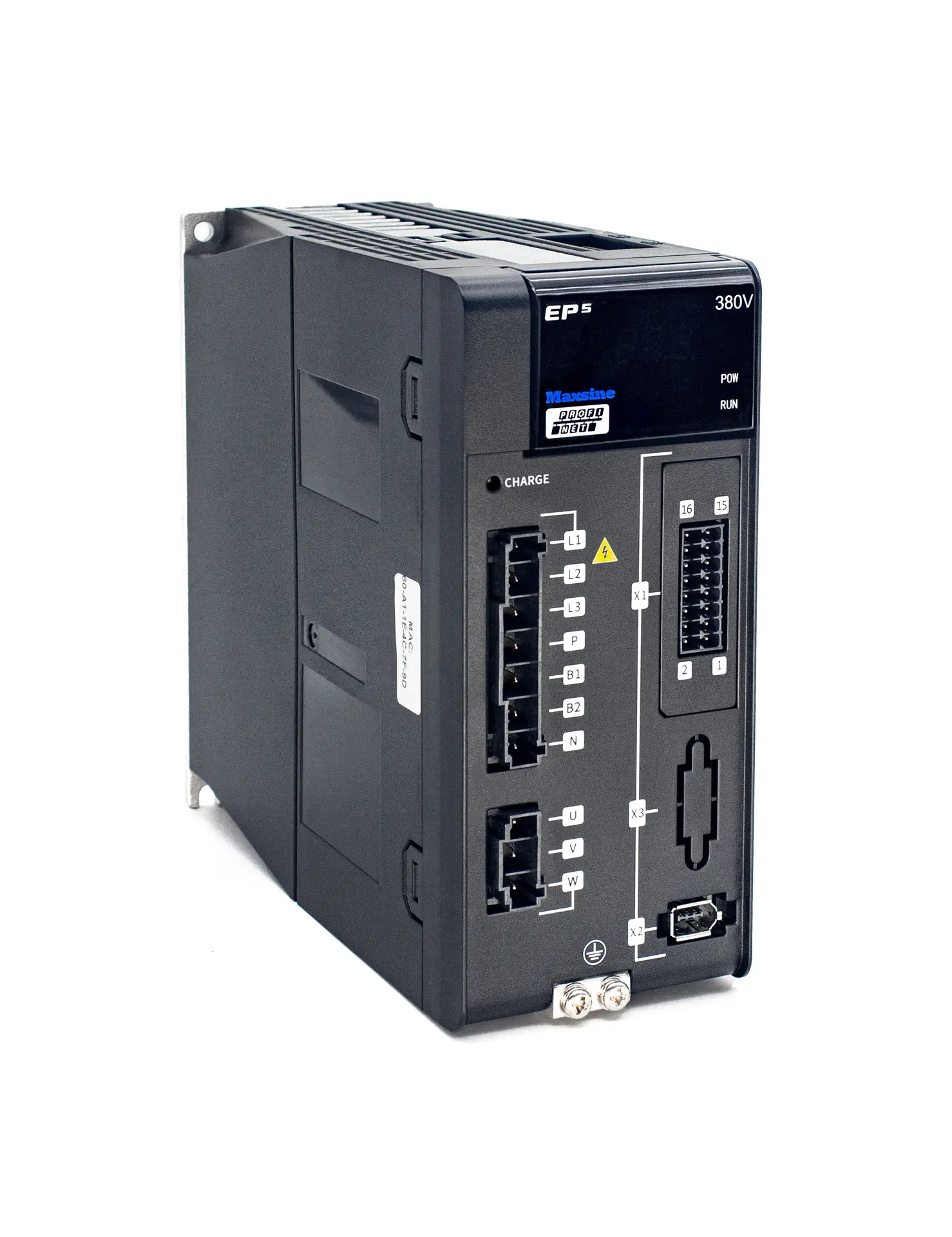

EP5 Series | Lightweight and High Performance Servo
● High performance gantry synchronization function
● High synchronization performance: 62.5 μ s high-speed communication cycle, internally integrated synchronization compensation gantry algorithm, ensuring excellent synchronization performance even in the case of differences in master and slave axis working conditions.
● Fully functional: Supports multiple zeroing methods, can return to the origin separately for flexible gantry structures, supports position synchronization and speed synchronization, meets different needs, single parameter gantry tuning, simple and easy to use.
● Safe and reliable: Real time detection of master and slave axis position deviation, built-in master-slave axis coordinated shutdown function, to prevent mechanical damage caused by abnormal situations.
Linear motor adaptation
● Support multiple feedback modes A, B, Z signals, BISS-C, etc
● Inherit all advanced control algorithms from EP5
● Support error compensation, high-speed position comparison output, etc
● Support high-precision linear gantry
A thinner and lighter exterior design significantly reduces installation size
● The volume of the 400W driver has decreased by 30% compared to the previous generation product
● The volume of the 750W driver has decreased by 40% compared to the previous generation product
Improved model algorithm for stronger performance
● 3kHz speed loop response bandwidth
● Supports up to 25 bit encoder
● Support online inertia recognition, automatic notch, mechanical analysis, and gain adaptation
● The bus series products support full closed-loop control
New interface design, higher usability
● Compatible with 5V differential/24V single ended command pulse input, with a maximum input pulse frequency of 4MHz
● Customization of 7-way DI/5-way DO functions
● The bus series products use spring terminal blocks and IO soldering free
● 1394 encoder interface
Compatibility design, stronger universality
● Driver output power 100W-15kW
● Can be matched with rotary motors, direct drive motors, and linear motors
● Can be paired with various types of encoders such as single/multi turn absolute value, magnetic encoder, rotary encoder, etc
More practical features to meet personalized user needs
● Optional dynamic brake
● Support remote firmware upgrade
● Optional Modbus, CANopen, EtherCAT, PROFINET communication
● Bus series products can choose STO function
