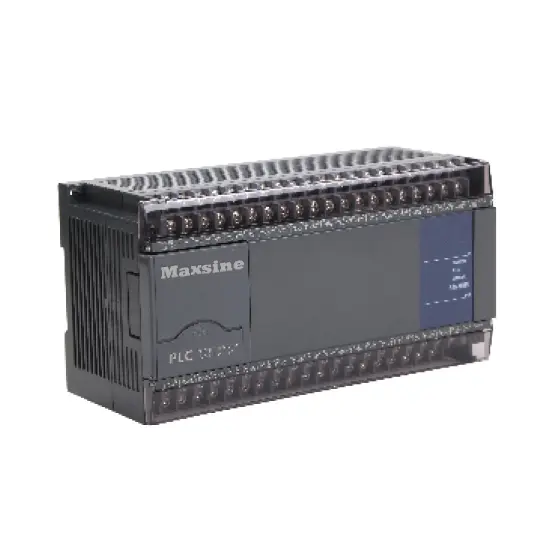

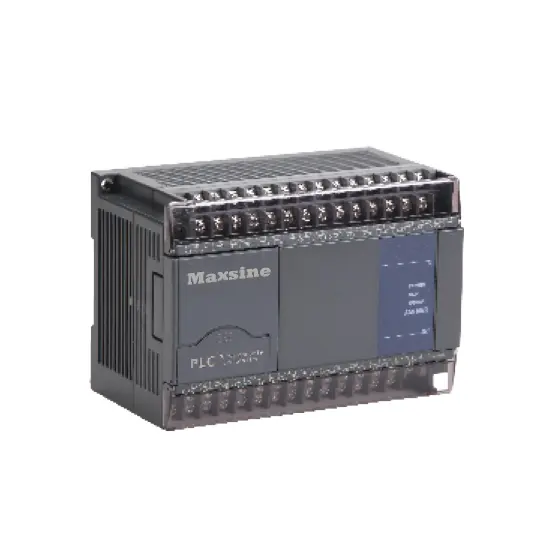

MX1N series | Small programmable controller
● The MX1N series combines the advantages of microcontrollers with the modular features of large PLCs.
● The CPU, power supply, and input/output are integrated, and display modules or function expansion boards (communication/analog/input/output) can be installed.

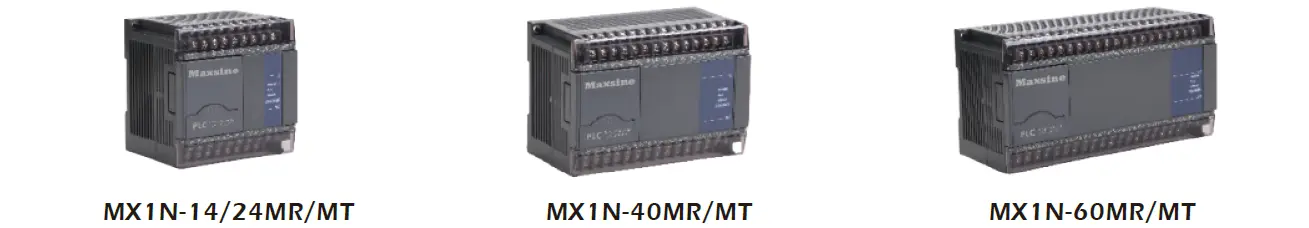

● Modular structure, providing a range of 14 to 128 input/output points, and can also add extended special functional modules (such as analog input/output).
● The transistor output type has two 100kHz pulse sequences for servo positioning applications.
● High speed computation, basic instruction: 0.7 µ s/instruction, application instruction: 3.7~100 µ s/instruction.
● 8000 step EEPROM program memory, 8000 data registers (no need for backup battery).
