Application of EP3E-PN in the Packaging Industry

1、 Application Introduction

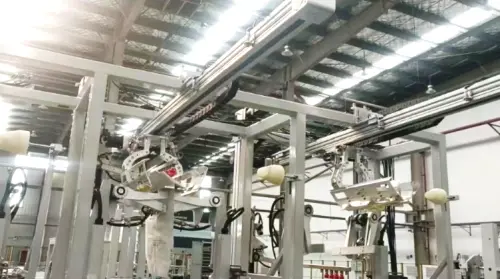

A certain fertilizer company manufactures outer packaging:

2、 Process requirements
7 × 24 operation
Fast, precise, and stable production
1000 units/hour per production line

3、 System solution

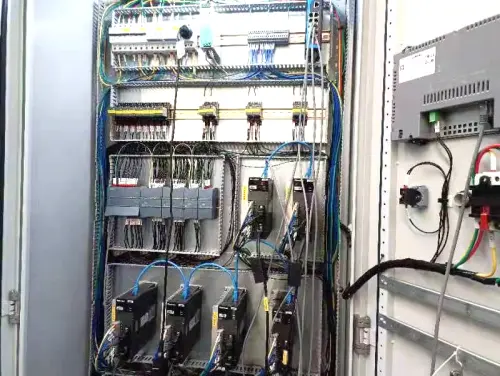

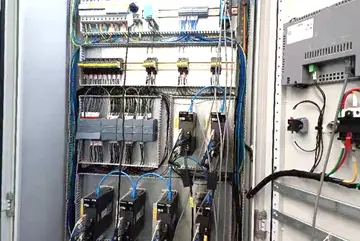

Siemens 1200+6EP3E PN (two production lines)

4、 Advantages of the plan
Fast servo acceleration and smooth operation
No malfunctions in a 7 × 24-hour working environment
Full bus solution, convenient wiring, easy maintenance, and can provide rich diagnostic information

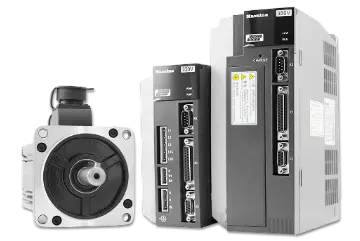

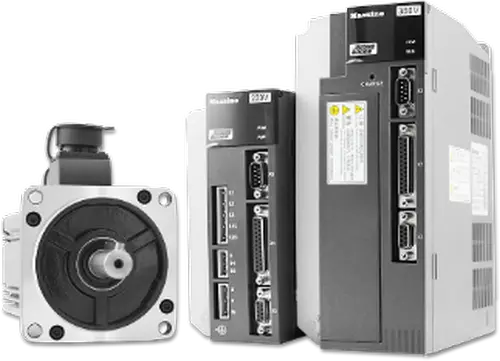

5、 Equipment Description EP3E-PN
Voltage: AC 220V/380V
Power: 0.1kW~7.5kW
Communication interface: PROFINET
Control mode: Supports standard messages 3 and 5 for process objects, as well as Siemens messages 102 and 105, integrated positioning function, supports Siemens message 111, compatible with SINA_POS (FB284 function block), supports auxiliary messages 750, 860, etc., to be updated in the future
Support 23 bit multi turn absolute value encoder
