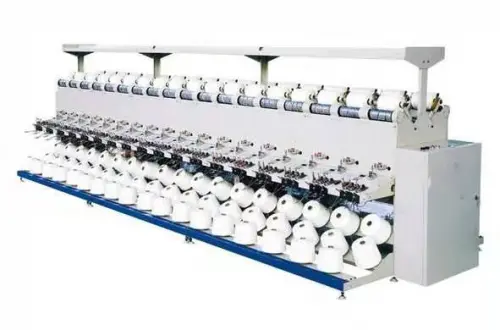

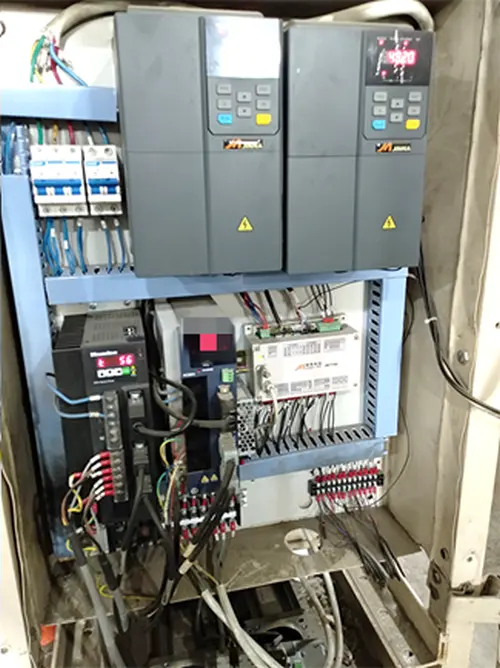

1、 Equipment pictures
2、 Control method
The controller (PLC or motion controller) controls the EPX-DH dual axis driver through pulse mode. The driver controls the transverse axis and winding axis respectively, and is compatible with the G series high inertia motor to ensure the continuous operation reliability of the equipment while reducing shaft vibration.
3、 Equipment Description
Servo Drive: EPX-DH Series, Customized Drive for Textile Industry
1. Suitable for 23 bit high-precision encoder
2. Supports 380V power input without the need for an external isolation transformer
3. No need for a separate external control power supply, the servo control power supply is directly powered from the internal main power bus
4. Standard configuration includes a common DC bus interface
5. Differential drive connection supports 1M pulse input
6. Support Maixin ServoSoft upper computer software, which can modify parameters and remotely upgrade firmware

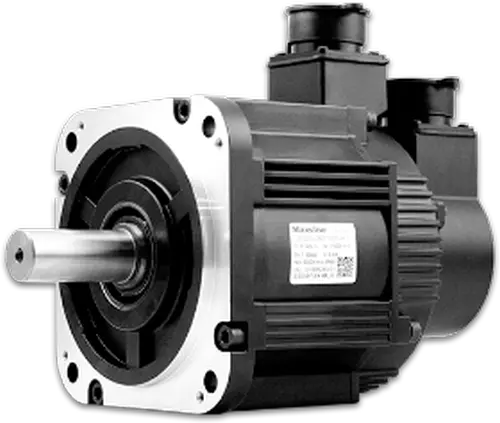

Servo motor: G series high inertia motor
1. Standard 23 bit ABS/INC high-precision encoder
2. High acceleration performance, low cogging torque
3. Stator sealing process, low temperature rise, high protection level
