The Application of EP1C Pro in the Textile Industry

1、 Application Introduction
The output barrel of a certain textile factory's drawing machine is below the specification of Φ 500mm × 1200mm. It is a double eye self leveling and straightening machine, with original multi spare barrels and automatic barrel changing device with electronic breakage, which has the ability to operate continuously for a long time. Using Wuhan Maixin customized dual axis motor, the equipment occupies a smaller space area and has a more optimized structure. Equipped with the EP1C Pro model driver from Wuhan Maixin, it achieves the effect of independent transmission of upper and lower coil servo motors, and the coil tension can be adjusted according to the level.

2、 Process requirements
· One machine with dual axes, controlling the upper and lower plates separately and with different speeds
· High response requirements and smoother start stop requirements
· 7 × 24-hour stable operation

3、 System solution
· Servo power range covers 100W~15kW

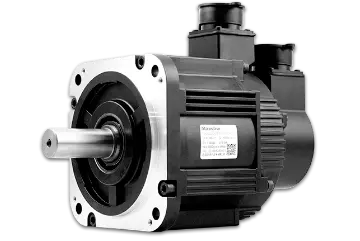

· Controlled by an EP1C Pro servo drive, a customized dual axis motor is used. The upper end of the motor is controlled by a pulley, and the lower end of the long rod is controlled by an inertia disc. This allows both sides to start and stop simultaneously at different speeds

4、 Advantages of the plan
· High servo stability
· No malfunctions in a 7 × 24-hour working environment
· Faster response, more functions, perfectly adapted to the process requirements of textile factories, smoother start stop

5、 Equipment Description EP1C Pro
· Voltage: AC 220V/380V
· Power: 0.1kW~5kW
· Communication interfaces: Modbus, CANopen, pulse control
· The 380V series driver eliminates the need for external 24V control power wiring; Optional internal/external brake resistor interface; Optional DC reactor interface
· Control method: Adopting a brand new ARM architecture CORTEXM4 hardware platform and more optimized software control algorithms
· Support four stage resonant notch filters; Support low-frequency vibration suppression and mid frequency vibration suppression; Support functions such as friction compensation, speed observer, and high-order control
· Compatible with 5V differential and 24V single ended pulse command input; Supports 11 programmable DIs and 5 programmable DOs; supports differential and single ended ABZ feedback outputs
