Water jet cutting is highly favored for its cold cutting that does not alter the physical and chemical properties of the material. Less waste than fire cutting, more environmentally friendly, and with a larger cutting thickness; More time-saving than wire cutting. Water jet cutting has been widely used in many industries such as ceramics, stone, glass, metal, composite materials, etc. It can perform one-time cutting and processing of any material with any curve. The company uses our products in curve processing.

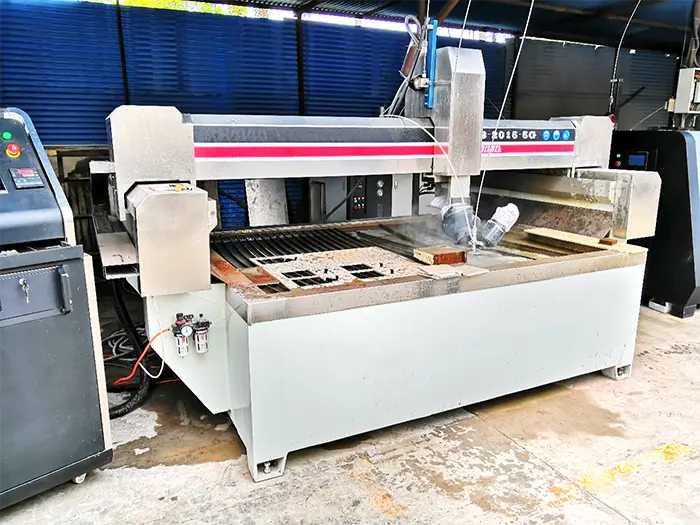

Application of EPX-E3S0EC equipment in pattern cutting of ceramic tiles in a certain company:
2、 Process requirements
The speed requirement for waterjet is 2.5 meters per minute to 3.5 meters per minute
Continuous operation in high humidity environment
Including processing of arcs, corners, and 45 degree slopes
3、 System solution
The system adopts Baoyuan customized waterjet cutting machine program computer+6 EPX-E3S0EC servos and supporting motors
430MP ultra-high pressure water pump
Servo power range covers 0.1kW~7.5kW
4、 Advantages of the plan
High production efficiency, cutting speed of 3 meters per minute, far exceeding other domestic manufacturers
Continuous use without malfunction in high humidity environment
Full bus solution, easy to maintain, can provide rich diagnostic information
Comparing the prices of imported matching servos has more advantages
5、 Equipment Description EPX-E3S0EC
Voltage: Three phase/single-phase AC 220V, -15%~+10%, 50/60Hz
Power: 0.1kW~7.5kW
Communication interfaces: EtherCAT, POWERLINK
Support 23 bit Tamagawa encoder
Can support remote firmware upgrade
Working humidity 40%~80% (no condensation)
Storage temperature: -40 ℃~50 ℃, working temperature: 0 ℃~40 ℃
Regenerative braking: Built in braking resistor, can be connected to an external braking resistor
