1、 Application Introduction
EP3E-E3S0EC is compatible with multi axis ceramic hollowing equipment (five axis punching machine)
2、 Process requirements
Carving, punching, hollowing out and other processing of pottery blanks
Continuous and stable operation in high dust environments
The driver should have high response and high stability in coordinated action
3、 System solution
Baoyuan 5800 system+12 EP3E-E3S0EC bus servos
Driver power coverage ranging from 0.2kW to 1.5kW
4、 Advantages of the plan
The system and driver are stable products with few faults, stable performance, and easy adjustment
The bus absolute value scheme position command is issued by the main station in a one-stop manner, without the need for external pulse or direction signals, and can also eliminate the need for travel switches. The wiring is convenient and simple
5、 Equipment Description EP3E-EC
Voltage: AC 220V/380V
Power: 0.1kW~15kW
Communication interfaces: PROFINET, EtherCAT, POWERLINK, MECHATROLINK-III

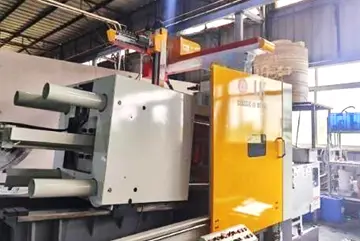

On the injection molding machine is the EP5+Xinrui system, with the EP5 TL04+080GSL01330 motor serving as the front and flip axes, and the EP5 TL08+080GSL02430 (with brake) motor serving as the upper and lower axes. The injection grade mechanical structure is
Learn More
1、 Application Introduction EP3E-E3S0EC is compatible with multi axis ceramic hollowing equipment (five axis punching machine) 2、 Process requirements Carving, punching, hollowing out and other processing of pottery blanks Continuous and stable ope
Learn More

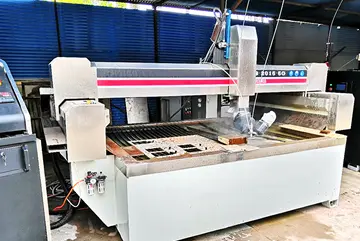

Water jet cutting is highly favored for its cold cutting that does not alter the physical and chemical properties of the material. Less waste than fire cutting, more environmentally friendly, and with a larger cutting thickness; More time-saving than wire cutt
