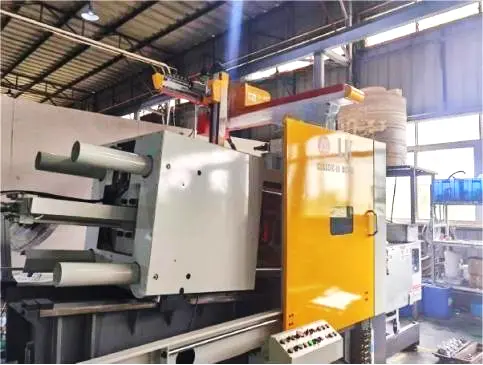

On the injection molding machine is the EP5+Xinrui system, with the EP5 TL04+080GSL01330 motor serving as the front and flip axes, and the EP5 TL08+080GSL02430 (with brake) motor serving as the upper and lower axes. The injection grade mechanical structure is divided into two parts, die-casting and robotic arm. The die-casting part of the mold can be replaced. After the mold is installed, tin is placed in mechanical dissolution as the die-casting raw material. Then, the mold is die cast through a cylinder, and the robotic arm comes down to clamp the mold, inject coolant, flip it over, and clamp it onto the conveyor belt.
2、 Process requirements
7 × 24 uninterrupted operation
3、 System solution
EP5+New Rui System
EP5 TL04+080GSL01330 motor as front and flip axis
EP5 TL08+080GSL02430 (with brake) motor as upper and lower shaft
4、 Advantages of the plan
Fast servo response and precise positioning
Complete protection function, stable and durable
5、 Equipment Description EP5
Significant reduction in installation size
Voltage: AC 220V/380V
Power: 0.4kW~15kW
Special features: Mechanical resonance trap, vibration suppression, optional STO for bus products
Model algorithm improvement, 3kHz speed loop response bandwidth
Support online inertia recognition, mechanical analysis, and gain adaptation
Support remote firmware upgrade
