1、 Application Introduction
EP3E-EC equipment is supported in the fully automatic water drilling production line.
2、 Process requirements

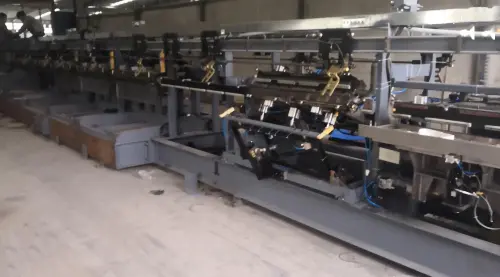

Fully automatic water drilling equipment

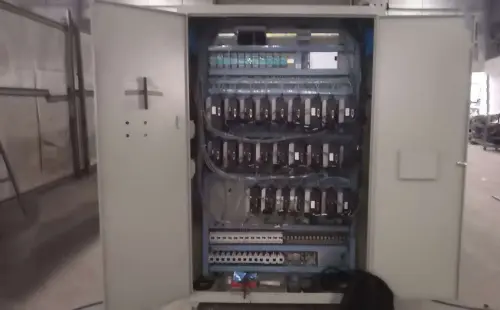

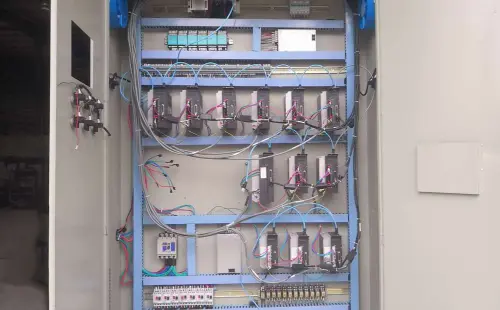

3、 System solution
1. The control system adopts Beifu
2. Servo power range covers 2kW~5kW
4、 Advantages of the plan
1. Structural optimization and convenient wiring.
2. 30000 hours of trouble free operation in high humidity and high dust environment

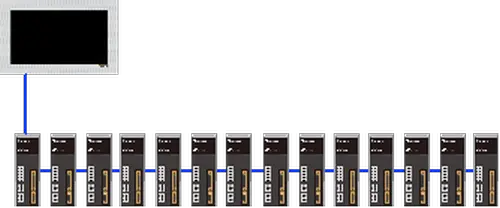

3. Full bus solution, easy to maintain, can provide rich diagnostic information

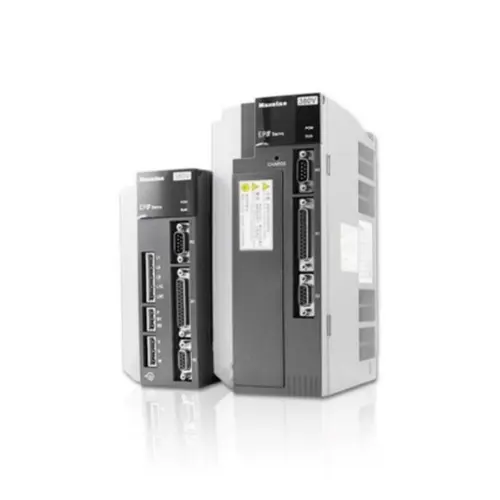

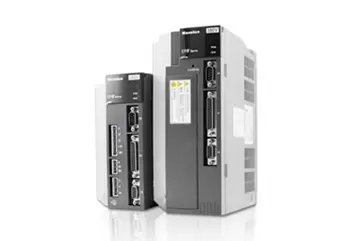

5、 Equipment Description EP3E-EC
1. Voltage: AC 220V/380V
2. Power: 0.1kW~15kW
3. 125 μ s minimum communication cycle
4. Synchronous jitter time less than 1 μ s, DC synchronization (SYNC 0)
5. Process data channel: 4RxPDO, 4TxPDO, 32bytes/PDO
6. Service data channel: 1SDO
7. Control cycle: Current loop 62.5 μ s, velocity loop 62.5 μ s, position loop 62.5 μ s
8. Operating modes: CSP, CSV, CST

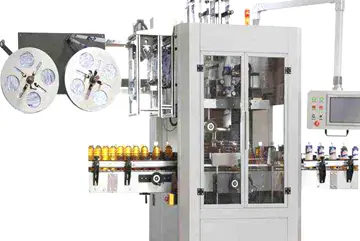

This device is suitable for labeling canned goods on assembly lines. The main controller is PLC+touch screen input. At the beginning, the frequency converter controls the conveyor belt to move at a lower speed, and then two Maixin EP5 servos act as feed axes t
